| Model | FPD-0A11 |
| Action way | Pilot type |
| Type | NC |
| Working pressure | 0.02Mpa-0.8Mpa |
| Input connection way | G3/4'' external threads |
| Output connection way | G3/4'' external threads |
| Applicable medium | water |
| Valve body material | Copper valve body |
| Medium temperature | 0-100℃ |
| Environment temperature | 0-50℃ |
| Electrical rating | AC220V,0.02A/ DC6V,0.6A/ DC9V,0.4A/ DC12V,0.3A/ DC24V,0.15A |
| Variable voltage of supply voltage | -10%~+10% |
| Insulation resistance | Tested by DC500V megohmmete for 1 min, the insulation resistance should ≥100MΩ |
| Watertigh performance | Hydrostatic pressure 0.02Mpa, leakage ratio ＜0.1mL/min, Hydrostatic pressure 0.03-0.8Mpa, leakage ratio 0 mL/min |
| Hydraulic pressure withstand | withstand hydrostatic pressure of 1. 2 Mpa for 5min, no unbroken, deformation or outside leakage |
| Reliability | 0.02-0.8Mpa, make and break for 10s respectively, lasting 1hr, the check valve should be unblocked |
| Flow characteristic | Pressure 0.02Mpa, Flux 3L/min, Pressure 0.1Mpa, Flux 8L/min. Pressure 0.3pa, Flux 13L/min. Pressure 0.8Mpa, Flux 25L/min |
| Across layers insulation | Withstand high ovltage pulse for 2s, it should be normal |
| Continuously energized | Energize for 12hrs, but not connect through the water, the valve should be no deformation, and the coil should not be burned |
| Withstand voltage | The acceptable high-voltage power between electric conduction and outer without electrified metal withstand AC1500V 50HZ for 1min, no flashover or breakdown. |
| withstand AC1800V, 50HZ for 1s, no flashover or breakdown | |
| Non-return function | No |
| Filtering function | No |
| Angle between coil and valve body | 270° / 180° / 90° / 0° |
| Power supply connection way | fixed with M3 screw / #6.3 bolt terminal |
| Life Expectancy | ≥100K cycles |
| Guarantee Period | Under the normal use conditions,the quality warranty period for our goods is 12 months |

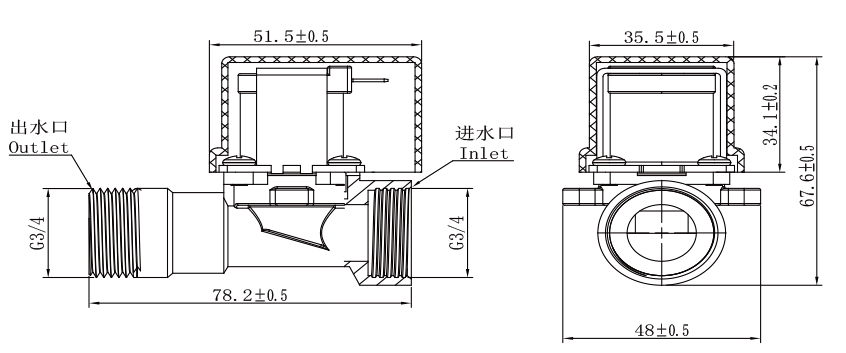

FPD-A11
Swipe left and right more
| Model | FPD-0A11 |
| Action way | Pilot type |
| Type | NC |
| Working pressure | 0.02Mpa-0.8Mpa |
| Input connection way | G3/4'' external threads |
| Output connection way | G3/4'' external threads |
| Applicable medium | water |
| Valve body material | Copper valve body |
| Medium temperature | 0-100℃ |
| Environment temperature | 0-50℃ |
| Electrical rating | AC220V,0.02A/ DC6V,0.6A/ DC9V,0.4A/ DC12V,0.3A/ DC24V,0.15A |
| Variable voltage of supply voltage | -10%~+10% |
| Insulation resistance | Tested by DC500V megohmmete for 1 min, the insulation resistance should ≥100MΩ |
| Watertigh performance | Hydrostatic pressure 0.02Mpa, leakage ratio ＜0.1mL/min, Hydrostatic pressure 0.03-0.8Mpa, leakage ratio 0 mL/min |
| Hydraulic pressure withstand | withstand hydrostatic pressure of 1. 2 Mpa for 5min, no unbroken, deformation or outside leakage |
| Reliability | 0.02-0.8Mpa, make and break for 10s respectively, lasting 1hr, the check valve should be unblocked |
| Flow characteristic | Pressure 0.02Mpa, Flux 3L/min, Pressure 0.1Mpa, Flux 8L/min. Pressure 0.3pa, Flux 13L/min. Pressure 0.8Mpa, Flux 25L/min |
| Across layers insulation | Withstand high ovltage pulse for 2s, it should be normal |
| Continuously energized | Energize for 12hrs, but not connect through the water, the valve should be no deformation, and the coil should not be burned |
| Withstand voltage | The acceptable high-voltage power between electric conduction and outer without electrified metal withstand AC1500V 50HZ for 1min, no flashover or breakdown. |
| withstand AC1800V, 50HZ for 1s, no flashover or breakdown | |
| Non-return function | No |
| Filtering function | No |
| Angle between coil and valve body | 270° / 180° / 90° / 0° |
| Power supply connection way | fixed with M3 screw / #6.3 bolt terminal |
| Life Expectancy | ≥100K cycles |
| Guarantee Period | Under the normal use conditions,the quality warranty period for our goods is 12 months |
